BALL VALVES

Ball Valves are quarter-turn valves that use a hollow, perforated sphere (the ball) to control fluid flow. They offer tight shut-off, making them ideal for applications requiring reliable sealing, even after long periods of disuse. Commonly used in Oil & Gas and Chemical Industries, ball valves are known for their durability, ease of operation, and low maintenance.

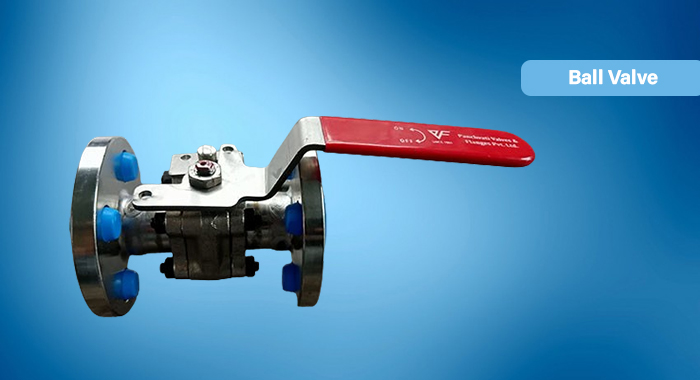

Ball valve

SPECIFICATIONS
Size Range : 1/2" to 36" (DN 15 to DN 900)
Pressure Ratings : ASME 150# / 300# / 600# / 900# / 1500# / 2500#
Material Options:
  • Carbon Steel: WCB
  • Low Temperature Carbon Steel: LCB
  • Austenitic Stainless Steel: CF8 / CF8M / CF3 / CF3M / CF8C / CF10 / CF10M etc.
  • Alloy Steel: WC6 / WC9 / C5 / C12 etc.
  • Duplex & Super Duplex Stainless Steel
  • Nickel Alloys
  • Nickel Aluminium Bronze
  • Hastelloy, Inconel, Titanium Alloy, Monel, Alloy 20
  • Carbon Steel with Internal CRA (Corrosion Resistant Alloy) Overlay

    • *Special materials & higher sizes available on request.

    Design Standards : API 6D, API 608, BS EN ISO 17292
    Pressure / Temperature Rating : ASME B16.34
    Testing & Inspection Standards: API 598, API 6D, ISO 5208, API 6FA, ISO 10497, BS 6364

    CONSTRUCTION & KEY FEATURES
    Body Designs :
  • 2-Piece
  • 3-Piece
  • Top Entry
    • Ball Types :
  • Trunnion Mounted
  • Floating Ball
    • Sealing Options :
  • Soft Seated (PTFE, RPTFE, Devlon, Nylon, etc.)
  • Metal Seated for high-temperature & abrasive service
    • End Connections:
  • Flanged
  • Butt-Weld
  • Socket Weld
  • Threaded
    •    Stem Design :
  • Blowout Proof Stem
  • Anti-static Device
    • Operation :
  • Lever Operated
  • Gear Operated

    • SPECIALIZED APPLICATIONS:

    Tailor-made designs for critical operations in:

  • Cryogenic Service (as low as -196°C)

    • Get the Best Ball Valve Price in India Contact us today for a quote or more technical details at info@panchvativalve.com
