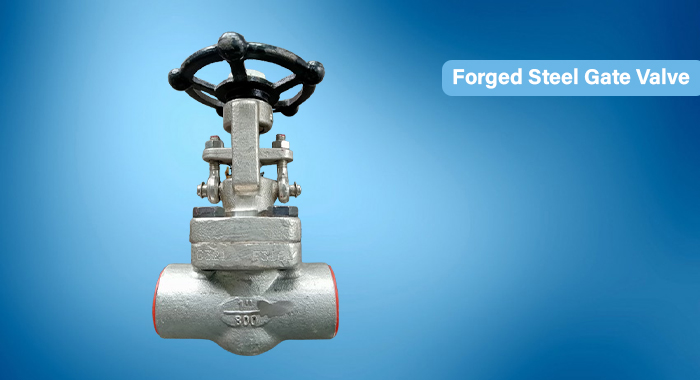

FORGED STEEL GATE VALVES

Forged Steel Gate Valves are engineered for High-Pressure and High-Temperature service where durability, compact design, and leak-tight sealing are essential. Ideal for Critical Applications in Oil & Gas, Petrochemical, Power Generation, and Refinery.

SPECIFICATIONS

Size Range : ½" to 2" (DN 15 to DN 50)
Pressure Ratings : ASME 150# / 300# / 800# / 1500# / 2500#
Materials Available :

Carbon Steel: A105, A105N

Low Temperature Carbon Steel: LF2

Chrome Moly Alloys: F5, F9, F11, F22, F91

Austenitic Stainless Steel: F304/ F304L/ F316/ F316L/ F321/ F321H/ F347/ F347H

Duplex & Super Duplex: F51 / F53

Monel, Inconel, Hastelloy, Alloy 20.

Special Alloys, Bronze & Custom Materials on Request.

Design Standards : API 602, ASME B16.34
Testing & Inspection Standards : API 598

CONSTRUCTION & KEY FEATURES

Body / Bonnet Types:

Bolted Bonnet

Welded Bonnet

Pressure Seal Bonnet (for high-pressure applications)

Stem Design:

OS&Y (Outside Screw & Yoke), Rising Stem

Body Options:

Integral Body

Forged Body with Full or Reduced Bore, Reduced Port & Full Port.

End Connections:

Socket Weld (SW)

Screwed (NPT/BSPT)

Butt Weld (BW)

Flanged Ends (on request)

Operations:

Handwheel

Motorised or Pneumatic Actuators (Optional)

SPECIALIZED APPLICATIONS

Tailor-made Designs for Critical operations in:

Cryogenic service (down to -196°C)

Corrosive environments with corrosion-resistant alloys or internal coatings

Optional Testing available for:

Low-emission sealing

Torque Performance

Pressure Integrity
