CAST STEEL GLOBE VALVES

Cast Steel Globe Valves are industrial valves designed to regulate flow in pipelines by using a movable disk-type element and a stationary ring seat. Made from durable cast steel, they offer excellent strength and resistance to High Pressure and Temperature. These valves are ideal for throttling applications in industries like Oil & Gas, Power, and Chemical Processing.

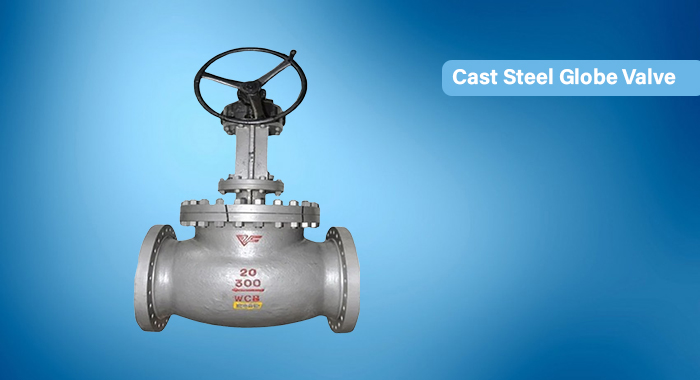

cast steel globe valve

SPECIFICATIONS
Size Range : 2" to 24" (DN 50 to DN 600)
Pressure Ratings : ASME Class 150#/ 300# / 600#/ 900#
Materials Offered :
  • Carbon Steel: WCB
  • Low Temperature Carbon Steel: LCB
  • Austenitic Stainless Steel: CF8, CF8M, CF3, CF3M, CF8C, CF10, CF10M etc.
  • Alloy Steel: C5, C12, WC6, WC9
  • Duplex & Super Duplex Stainless Steel
  • Nickel Alloys (Inconel, Monel, Hastelloy)
  • Nickel Aluminium Bronze
  • Titanium Alloy
  • Carbon Steel with Internal CRA (Corrosion Resistant Alloy) Overlay

    • *Special materials and larger sizes available upon request.

    Design Standards : API 598, BS6755
    Testing Standards : API 598, BS6755

    CONSTRUCTION & FEATURES
    Body / Bonnet Types:
  • Bolted Bonnet
  • Pressure Seal Bonnet (for high-pressure service)
    • Disc Types:
  • Plug Type
  • Y Type
  • Parabolic Disc (for flow control)
    • Seat Design:
  • Renewable or Hard-faced
  • Stellite Overlay Available for Severe Service
    • End Connections:
  • Flanged
  • Butt-Weld
    • Stem Type:
  • OS&Y (Outside Screw & Yoke), Rising Stem
  • Backseat arrangement provided for packing replacement under pressure
    • Operations:
  • Manual: Handwheel, Gear Operated
  • Actuated: Electric, Pneumatic, or Hydraulic actuators available on request

    • SPECIALIZED APPLICATIONS

    Tailor-made designs for critical operations in:

  • Cryogenic Service (as low as -196°C)
  • High Temperature Capabilities (>600°C - Steam & Process applications)

    • Optional testing available for:

  • Cryogenic Testing
  • Fire Safe Testing

    • Get the Best Cast Steel Globe Valve Price in India Contact us today for a quote or more technical details at info@panchvativalve.com
