FORGED STEEL LIFT CHECK VALVES

Lift Check Valves are one-way valves that allow fluid to flow in a single direction, using a disc that lifts off the seat when forward flow occurs. When flow reverses, the disc drops back to prevent backflow. They are ideal for High-Pressure Applications in Steam, Gas, and Liquid Systems.

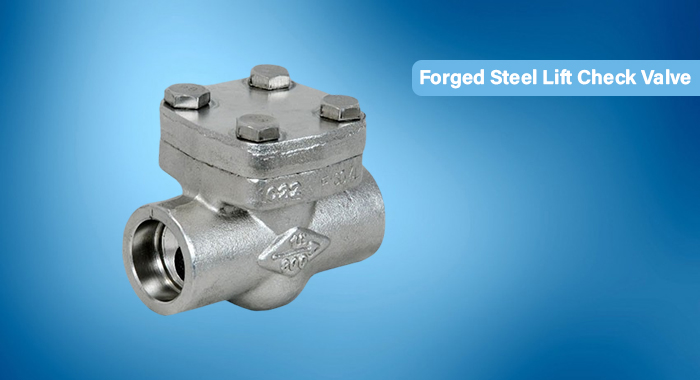

forged steel lift check valve

SPECIFICATION

Size Range : ½" to 2" (DN 15 to DN 50)
Pressure Ratings : ASME 150# / 300# / 800# / 1500# / 2500#
Materials Available :
  • Carbon Steel: A105 / A105N
  • Low-Temperature Carbon Steel: LF2
  • Chrome Moly Alloys: F5 / F9 / F11 / F22 / F91
  • Austenitic Stainless Steel: F304 / F304L / F316 / F316L / F321 / F321H / F347 / F347H
  • Duplex & Super Duplex F51 / F53
  • Nickel alloys: Monel, Inconel, Hastelloy, Alloy 20
  • Special Alloys, Bronze & Custom Materials on request
    • Design Standards: API 602, ASME B16.34
    Pressure / Temperature Rating: ASME B16, 34
    Testing & Inspection: API 598, ISO 5208, IBR Certificate

    CONSTRUCTION & KEY FEATURES
    Body / Cover Types :
  • Bolted Cover
  • Welded Cover
  • Pressure Seal Cover (for high-pressure service)
    • Disc Type :
  • Piston-Type Lift Disc
  • Guided Vertical Motion for Precise Seating
    • Seat Options :
  • Renewable or Integral Seat
  • Hard-Faced/Stellite Overlay for Extended Service Life
    • End Connections :
  • Socket Weld (SW)
  • Screwed Ends (NPT / BSPT)
  • Butt Weld (BW)
  • Flanged Ends (available on request)
    • Operation Options :
  • Automatic (No manual or external actuation required)
  • Suitable for Horizontal and Vertical (Upward) Flow Installations

    • SPECIALIZED APPLICATIONS

    Tailor-made designs for critical operations in:

  • Cryogenic Service (as low as -196°C)
  • Highly Corrosive Fluids with special alloys or internal CRA overlays

    • Optional testing available for:

  • Fugitive-emission Test
  • Fire Safety Test
  • High cycle Operations

    • Get the Best Lift Check Valve Price in India Contact us today for a quote or more technical details at info@panchvativalve.com
