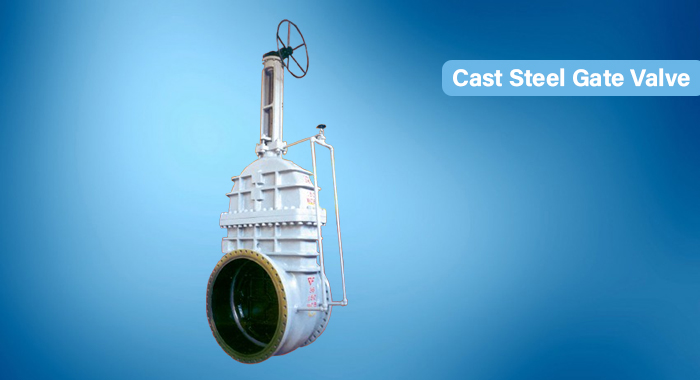

CAST STEEL GATE VALVES

Cast Steel Gate Valves are robust shut-off valves used to control the flow of liquids or gases by raising or lowering a solid gate inside the valve body. Constructed from cast steel, they offer high strength and durability for High-Pressure and High-Temperature applications. These valves are commonly used in industries such as Oil & Gas, Petrochemical, and Power Generation.

cast steel gate valves

SPECIFICATIONS
Size Range : 2" to 48" (DN 50 to DN 2200)
Pressure Ratings : ASME 150#/ 300#/ 600#/ 900#/ 1500#/ 2500#
Materials Offered :
  • Carbon Steel: WCB
  • Low Temperature Carbon Steel: LCB
  • Austenitic Stainless Steel: CF8, CF8M, CF3, CF3M, CF8C, CF10, CF10M
  • Alloy Steel: C5, C12, WC6, WC9 etc.
  • Duplex & Super Duplex Stainless Steel,
  • Nickel Alloys
  • Nickel Aluminium Bronze
  • Hastelloy, Inconel, Titanium Alloy, Monel, Alloy 20.
  • Carbon Steel with Internal CRA (Corrosion Resistant Alloy) Overlay

    • *Special material & Higher Size are also available on request.

    Design Standards : API 600, BS 1414
    Pressure / Temperature Rating : ASME B16.34
    Testing & Inspection Standards : API 598, BS 6364

    CONSTRUCTION & KEY FEATURES
    Body / Bonnet Types:
  • Bolted Bonnet
  • Pressure Seal Bonnet
    • Stem Design:
  • OS&Y (Outside Screw & Yoke), Rising Stem
    • End Connections:
  • Butt Weld
  • Flanged
  • RTJ Flanged
    • Operations:
  • Handwheel
  • Gear Operated
  • Actuators: Pneumatic, Hydraulic, Electro-Hydraulic, Electric Motorised

    • SPECIALIZED APPLICATIONS:

    Tailor-made designs for critical operations in:

  • Cryogenic Service (as low as -196°C)

    • Optional testing available for:

  • Cryogenic Testing
  • Fire Safe Testing

    • Get the Best Gate Valve Price in India Contact us today for a quote or more technical details at info@panchvativalve.com
