CAST STEEL SWING CHECK VALVES

Swing check valves are automatic one-way valves that use a hinged disc to allow forward flow and prevent reverse flow by swinging closed when flow stops. They offer low pressure drop and are suitable for horizontal or vertical installations. Commonly used in water, oil, and gas pipelines for backflow prevention.

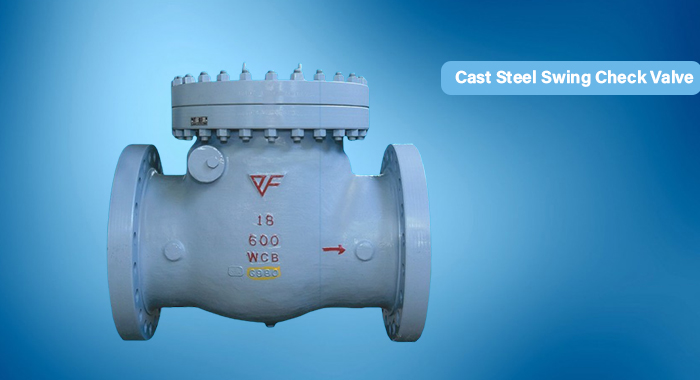

cast steel swing check valve

SPECIFICATION
Size Range : 2" to 24" (DN 50 to DN 600)
Pressure Ratings : ASME Class 150 / 300 / 600 / 900
Material Options:
  • Carbon Steel: WCB
  • Low Temperature Carbon Steel: LCB
  • Austenitic Stainless Steel: (CF8 / CF8M / CF3 / CF3M / CF8C/ CF10 / CF10M etc.
  • Alloy Steel: C5 / C12 / WC6 / WC9 etc.
  • Duplex & Super Duplex Stainless Steel
  • Nickel alloys: Monel, Inconel, Hastelloy
  • Nickel Aluminium Bronze
  • Titanium Alloy
  • Carbon Steel with Internal CRA (Corrosion Resistant Alloy) Overlay

    • *Special Materials and larger sizes available upon request.

    Design Standards : BS 1868, ASME B16.34
    Testing Standards : API 598, BS 6755

    CONSTRUCTION & KEY FEATURES
    Body / Cover Type :
  • Bolted Cover
  • Pressure Seal Cover (for high-pressure service)
    • Disc Type :
  • Swing Type Disc with Hinge Mechanism
    • Seat Design :
  • Renewable or Integral Seat
  • Hard-Faced/Stellited Overlay for Severe Service
    • End Connections:
  • Flanged
  • Butt-Weld
    • Flow Characteristics :
  • Designed for Low Pressure Drop and Non-Slam Operation
    • Operation :
  • Automatic Operation (No external actuation required)
  • Optional Dashpot for Dampened Closure (on request)

    • SPECIALIZED APPLICATIONS
    Tailor-made designs for critical operations in:
  • Cryogenic service (up to -196°C)
  • High Temperature Capabilities ( >600 degree)

    • Optional testing available for:

  • Fire Safety Test
  • High cycle Operations

    • Get the Best Swing Check Valve Price in India Contact us today for a quote or more technical details at info@panchvativalve.com
